Preview: Gargmel - A non-opinionated GitHub monitoring dashboard powered by YAML

Preview: Gargmel - A non-opinionated GitHub monitoring dashboard powered by YAML

- 8 mins

I told myself I wasn’t going to work on other side projects.. I did not want to stretch myself to thin while being a new dad, lead maintainer of fastlane, and just recently release An Otter RSS and ConnectKit. But, while focusing on my day-to-day fastlane work, I shortly realized there was another tool that I needed that didn’t exist.

fastlane has one main repository under the https://github.com/fastlane/fastlane organization… but that is not the only one. There are about four other repositories that I need to monitor regularly. There is also the https://github.com/fastlane-community organization which contains fastlane plugins and dependencies that fastlane users rely on that needed a new home 😇 There are a total of 19 repositories in there that need some monitoring. Most of these repositories aren’t super active but are still active.

I have GitHub notifications enabled for repositories but it’s very, very easy to let important notifications slip by. I needed a tool that helps me monitor the health of these repositories while also giving my GitHub notifications a supercharged filter to show me notifications that I might have missed.

And that tool is “Gargamel” 😈

Gargamel

Gargamel is a non-opinionated monitoring dashboard powered by a YAML file. It was meant to work only with the GitHub API but actually can work with any API.

That probably doesn’t mean much so keep reading about the requirements, the development decisions, and the product 😉

The Requirements

Gargamel is 100% intended to an app for 100% me 😊 Going into this I did not take anybody’s needs except myself into this. I needed a tool that fit my very specific needs. With that in mind, the first thing I did was put together some quick notes on what I needed to make. But the important part wasn’t what I needed to make… it was also what I didn’t need to make. I wanted to make sure I boxed my expectations into something that didn’t get out of hand 😇 I didn’t want to start polishing the app and making it super performant from the beginning. I wanted something that took me a few partial days of hacking that “just worked”.

## Description
Dashboard to monitor GitHub repositories and associated notifications. Also allows a custom calculated health or warning system when attention is needed.

## MVP
- YAML configuration file
- Repo view
    - Org/name
    - Custom field and value
        - https://stackoverflow.com/a/21233623
- Notification view
    - Group notifications by repo
    - Filter notifications (better than GitHub)
        - Allow batch clearing of notifications
        - Eample
            - Things fastlane bot closed
            - PR status changes
            - PR notifications
            - Issue notifications
            - Discussion notifications

## Things to not care about
- Speed and caching
    - This will not be looked at often (maybe only at start, middle, and end of day)
- Background refresh
    - Might be a long running job because of number of repos and configurations
    - Could run in background but not necessary (especially on iOS)
- Don't make pretty
    - Just work

The Development Decisions

Based upon these requirements I set for myself, I decided Gargamel would:

YAML Configuration

  1. YAML drives the views (either a grid or list type)
  2. Views have API endpoints that will get requested
  3. Views get defined with code sections that will be executed using JavaScriptCore
  4. API responses get forwarded and executed in JavaScriptCore
  5. SwiftUI renders data return from JavaScriptCore

Here is a simple sample that displays fastlane/fastlane and fastlane/docs in a grid view:

aliases:
  personal_token: &personal_token
    username: "YOUR_GITHUB_USERNAME"
    password: "YOUR_GITHUB_PERSONAL_ACCESS_TOKEN"
  repo_health: &repo_health |
      function(repo, issues, pulls) {
        // Need to filter out pull requests
        issues = issues.filter(function(issue) {
          return !issue.pull_request;
        })

        return {
          “fields”: [
            {
              “name”: “Open Issues”,
              “name_weight”: “bold”,
              “value”: issues.length
            },
            {
              “name”: “Open Pulls”,
              “name_weight”: “bold”,
              “value”: pulls.length
            }
          ]
        };
      }
views:
  -
    name: 👀 fastlane
    type: grid
    items:
      -
        title: fastlane/fastlane
        subtitle:
        endpoints:
          -
            endpoint: https://api.github.com/repos/fastlane/fastlane
            basic_auth: *personal_token
          -
            endpoint: https://api.github.com/repos/fastlane/fastlane/issues?state=open&per_page=100
            basic_auth: *personal_token
            all: true
          -
            endpoint: https://api.github.com/repos/fastlane/fastlane/pulls?state=open&per_page=100
            basic_auth: *personal_token
            all: true
        code: *repo_health
      -
        title: fastlane/docs
        subtitle:
        endpoints:
          -
            endpoint: https://api.github.com/repos/fastlane/docs
            basic_auth: *personal_token
          -
            endpoint: https://api.github.com/repos/fastlane/docs/issues?state=open&per_page=100
            basic_auth: *personal_token
            all: true
          -
            endpoint: https://api.github.com/repos/fastlane/docs/pulls?state=open&per_page=100
            basic_auth: *personal_token
            all: true
        code: *repo_health

The Product

I’m very happy with what I’ve thrown together with fairly minimal work 😊

I have…

The grid views are what I was really after when making Gargamel. It’s not super pretty but it allows me to easily see the health of all of fastlane’s parts 😎

The notifications lists aren’t very interactive at the moment and I’m not sure if I will implement anything for them in the future. This is mainly to get my attention to attend to these issues somewhere else. 🤷‍♂️

Side note: I’m currently testing out Lotus for managing GitHub notifications

My YAML Configuration

There is a lot to this YAML file 😬 A lot of it is copy-paste and I may work on finding ways to trim this down in the future but… I don’t expect this to change too often. This file can easily be edited in a text editor (which I don’t want to recreate).

Screenshots

These are screenshots that match the YAML configuration above 👆

fastlane

fastlane-community

fastlane regressions

fastlane big reactions

Notifications - fastlane pull requests

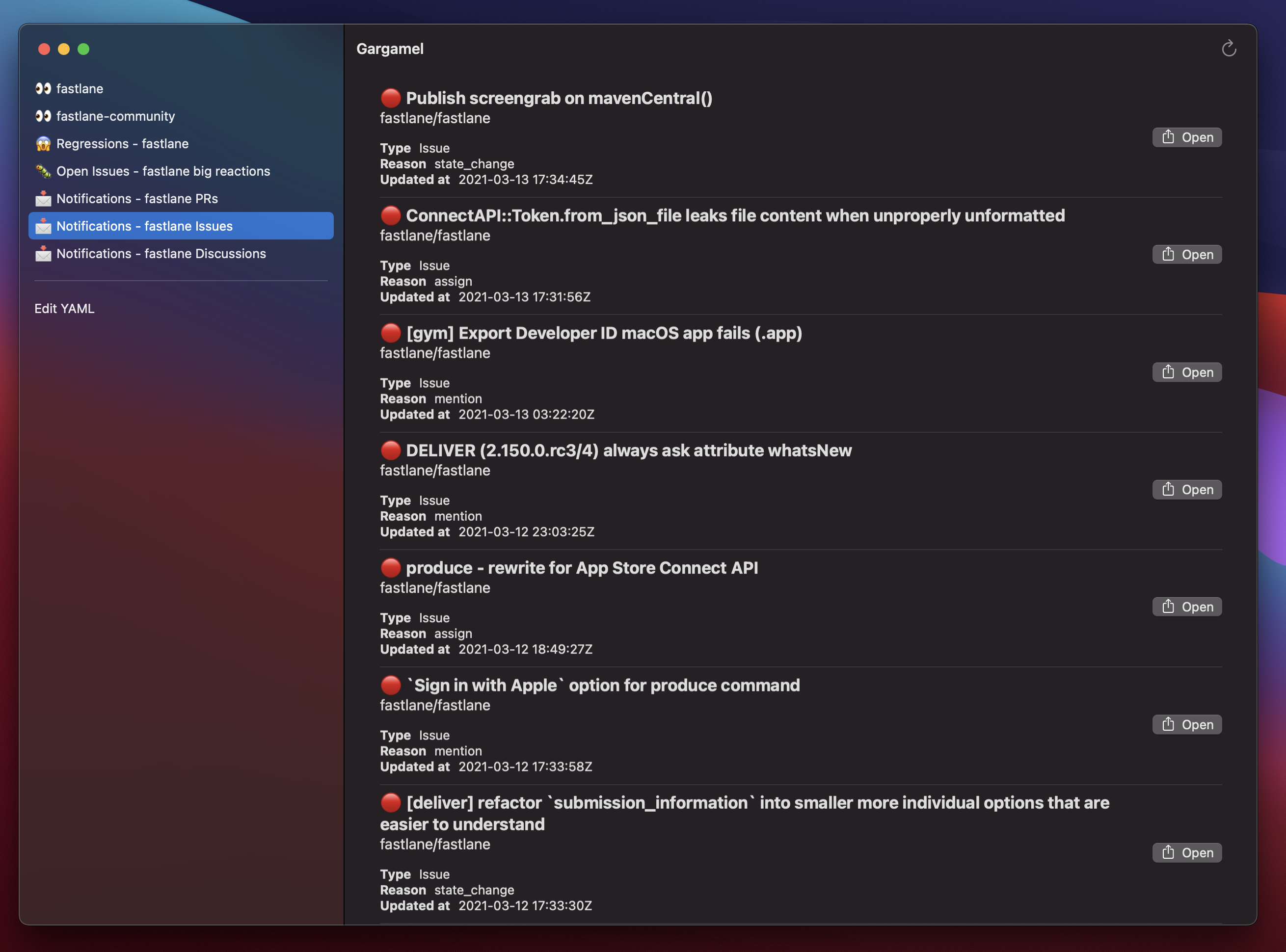

Notificatinos - fastlane issues

Notifications - fastlane discussions

The Future

I’m not exactly sure where I’m going to take Gargamel in the future. I made this for me but I also wanted to share it because I love it 😊 I don’t really want to productize it. That’s a lot of added pressure and I’m not sure I could make everybody happy. I’m thinking of open sourcing it if other find that this would be useful. I don’t want to recruit anybody to help because that is added pressure but I’d be happy if others found excitement in this.

If you see any issues in this article, have any feedback, or would have interest in contributing to Gargamel, please feel free to tweet me at @joshdholtz or email me.

Happy side projecting, everyone! 😜
